详细资讯
Detail Info

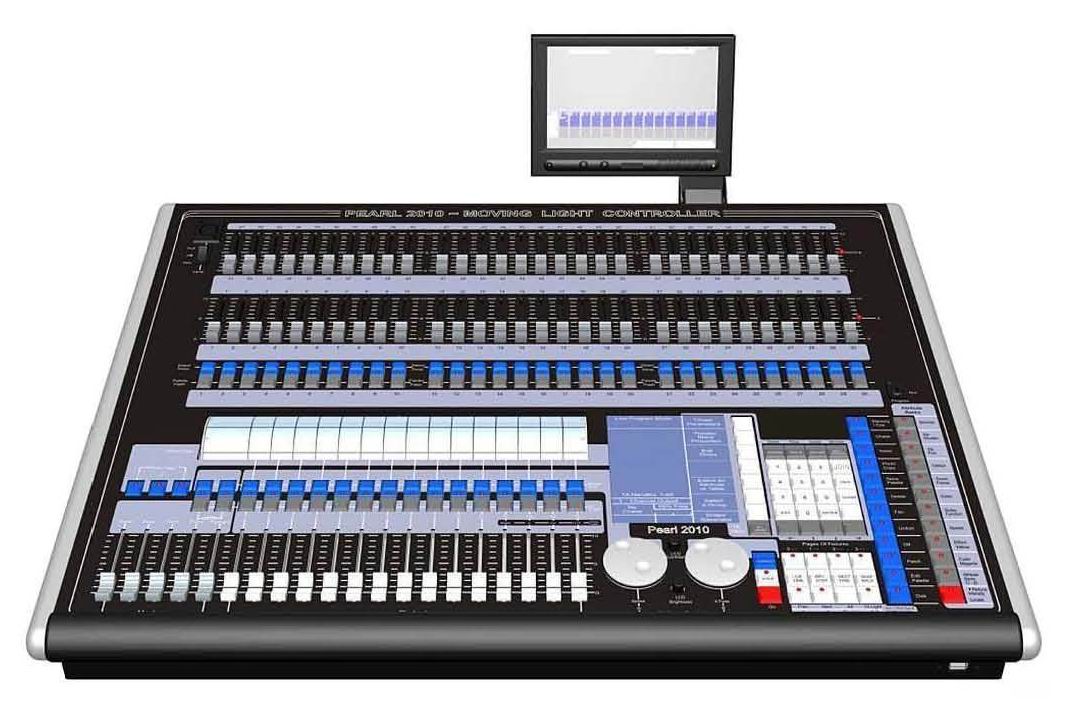

珍珠2010控制台
详细资讯

珍珠2010控制台2048
JOIN-HT2010  512信号控制台
技术参数/性能特点:
电源:AC 90-240V,   50-60Hz
珍珠2010  (珍珠2008的升级版本)
详细规格四个光电隔离独立驱动信号输出端口
U盘输灯库     DMX512/1990标准,2048个DMX控制通道
四个光电隔离独立驱动信号输出端口。可抗2000Vrms电气
冲击。独立电源独立信号。可以控制40通道最多
240台电脑灯和120路调光
320×240大屏幕显示所有操作和变化及输出,通道软分配。
可以存储300个程序,旋钮有不同的时间可调。X/Y控制自
然顺滑。现场可以拷贝通道项目清单。独立系统锁功能,有
效防止误操作内置世界知名灯库使用更方便。机内固化多种
特效程序,有效支持现场变换特效。USB存储器,可以有效
保存现场数据。内置高性能绿色开关电源。90V-250V电压
适应范围。符合全世界各国电源要求(定制)     音频输入连
接器:XLR-D3F×2专业工作灯,适合室内外演出使用。
净重:15.52KG          毛重:31KG
产品尺寸:66.5*50*14.5cm        包装尺寸:70.5*55*25cm

Pearl 2010 console 2048
JOIN-HT2010 512 signal console
Performance characteristics of technical parameters of /:
Power supply: AC 90-240V, 50-60Hz
Pearl 2010 (Pearl 2008 upgrade version)
Detail specification four photoelectric isolating independent drive signal output port
TECHNICAL PARAMETER
USB can input the light library.DMX512/1990 Standard, total 2048 DMX
controlling channels. 4 output interface with optical isolated, withstand
2000 Vrms. Control 240 computer lights, the channel for each computer
light can be patch, up to 40 channels. 320×240 big screen displays all
opeation, change and output. Passways are distributed. Knob can be
adjusted for different time. X/Y can be control smoothly.
The keyboard can be locked independently to avoid incorrect operation.
The world famous light libary set internally is convenient to be used.
Several fixed internal programs for special effect can provide changeable
effect in live. USB memorizer can save the data in live effectively.
Green switch power supply installed internally with high
performance and the applicable voltage scope of 90V250V is suitable for all
thepowersupply in the world(to be ordered).      Connector: XLR-D3F×2.
Specialized gooseneck light provides smooth control to the panel.
Specialized fly case makes transportation and performance more safe
and convenient.
Net Weight :15.52KG                  Gross Weight :31 KG
Product Size :66.5*50*14.5cm    Packaging Size :70.5*55*25cm
