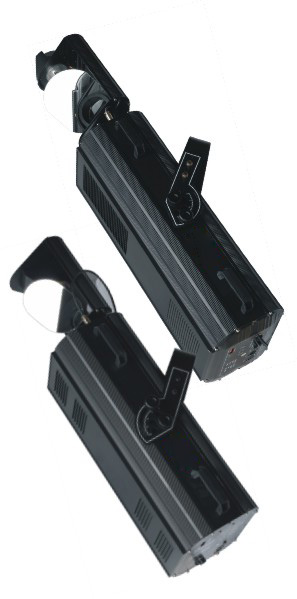

HT-Scan Light
1200W/575W Scan Light

TECHNICAL PARAMETER
Voltage:220V/50Hz
Lamp: HMl 575W / 1200W
Power Consumption :680W
Control Signal: DMX512　
Control Channels:8CH
Size:105×44×32CM
N. W:33kg      G. W:37kg

PERFORMANCE TRAIT
Applying new type aluminum alloy and casting steel plate shell design
The electronic circuit applies U.S new space chips group,
stable and strong ability inanti-interference
7 kinds of colors and rainbow effect
6 changeable rotating patters,5 rotating patterns ,
1 glass pattern Strobe,light adjusting integration design
Three,five and fold prism effect
Horizontal 170° and vertical 90°scanning range
2 convection cooling-fan ,optimize internal air duct way,
heat elimination rapidly
Built-on over heat protection and high voltage protection.
Compatible with DMX512 international digital signal
PFC power factor compensation
According to various kinds of safety standards,IP20protectgrades,
The cable accords to the CE20/22 standard
Suitable for large middle and small performance occassios,
the multifunctional studio and Disco
