Detail Info
|
|
|
|
|
|
|
5R light (lighting)

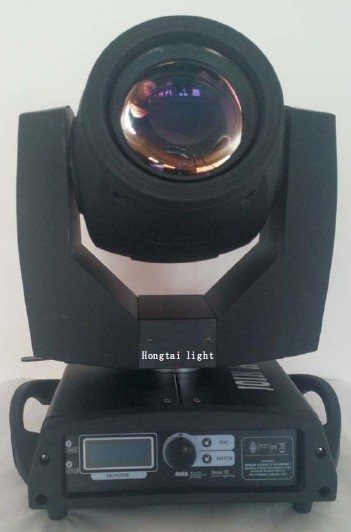

HT BEAM-230W
Technical parameters:
1, bulb type: PHILIPS/OSRAM 200W 230W (8000K color temperature, 2000 hours)
2, control: control switch lighting or manual
3: electronic ballast, ballast (380V input)
4: switching power supply, power supply (100-240V input)
5, optical devices: 3 pieces of lens type lens, zoom 0 ° --3.9 °; electronic focusing; 20 meters, 50000LUX
6, the main color: 14 color + white, rainbow effect, 14 kinds of color linear mixture
7, gobo wheel: 17 fixed pattern + white, patterns of water effects, pattern and effect of vibration pattern of arbitrary angle positioning, clockwise and anticlockwise rotation pattern
8, stroboscopic stroboscopic stroboscopic: independent channel, linear speed is adjustable, built-in macros
9, dimming, dimming: channel independent, 0-100 exact linear dimming
10: independent linear atomization, atomization, 0%~100% linear atomization,
Prism and arbitrary angle positioning, rotating, the prism pattern combined built-in program
Precision electric focusing 11, X/Y axis motion: X axis 540 °, 280 ° Y axis, X/Y axis with automatic correction function
X/Y speed independent regulation, rotary trimming function
12, the X/Y axis resolution: 8/16 bit
13, control and programming of 2 kinds of channel mode: 16 international standard DMX512 channel and 20 international standard DMX512 channel
Built-in microphone for voice effects
Independent operation and with master-slave function
Dial menu control, LCD liquid crystal display
Standard 3 pin XLR XLR input and output signal
The 14 dimension and weight
The overall size: 340 x 400 x 490mm
Weight: 16Kg |
|
|
